CCTV Camera Cables
Application
These cables are specifically designed to transmit complete video frequency with minimum distortion or attenuation for security and surveillance. This cable is offered in two variants viz., 4+1 and 3+1 CCTV Camera cable.
Properties
CCTV cables are designed to optimize the quality of video signals. The dense tin coated copper screen ensures complete elimination of EMI/ RFI from video signals and also provides reduced DC resistance ground path. The multi stranded construction offers better flexibility and reduced bending radius.

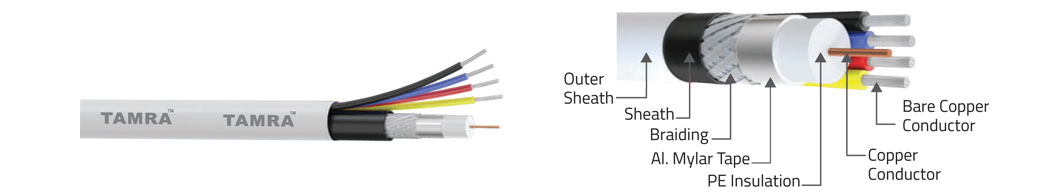

Cable Construction
- Conductor - The central conductor is made of fine wires annealed bare electrolytic grade copper
- Insulation - The insulation provided over the conductor is of HDPE with high dielectric strength and low capacitance
- Screen - Annealed tin/ al alloy coated copper 85% coverage appro x
- Sheath - PVC Power Cores
- Conductor - The central conductor is made of fine wires electrolytic grade copper
- Insulation - The insulation provided over the conductor is of PVC with high dielectric strength
- Seperator - PETP tape
- Sheath - PVC
- Cable Colour - White / UV resistance to ASTM G 154
Cable Design Parameters
| Cable Type | Cable Size (Sq. mm) | DNioammientaelr C(ambmle) | PoCwoelro Cuorre |
|---|---|---|---|
| CCTV Cable 4+1 | 4C + 1C × 0.25 | 6.8 | RD, YL, BK, GN |
| CCTV Cable 3+1 | 3C + 1C × 0.25 | 6.8 | RD, BK, GN |
